PATCH CORDS & MOLDED CABLE ASSEMBLIES
MULTIPIN INTERCONNECTORS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

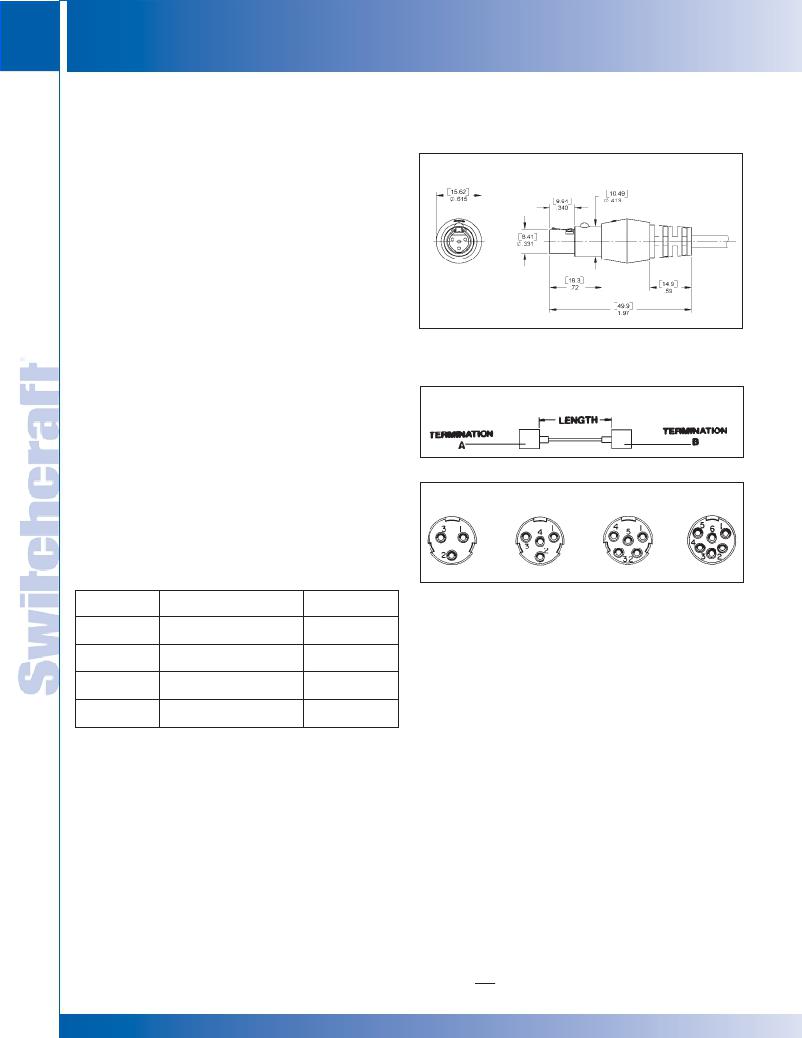

MOLDED CABLE ASSEMBLIES
WITH MINIATURE, SHIELDED, MOLDED TINI Q-G ? PLUGS
STYLE ST600
Tini Q-G ? miniature plugs offer 3- through 6-pin/contact
connecting with full shielding, small size, RFI-protected
termination of analog/digital circuits/equipment. Typical
applications are for EIA RS-232C and RS-449 type
connections. Plugs retain all Tini Q-G ? features, including
latchlock, strain relief, flex relief, polarization and
“scoop-proof ” construction. See Connector Section for details
on features and specifications. Shielding of these plugs meets
U.S. Navy Tempest requirements with proper cable and
mating connector choice.
MOLDED CABLES WITH STRAIGHT FEMALE
Tini Q-G ? PLUGS (Special Order Only)
Three- through 6-contact plugs are molded into a complete
cable assembly per customer requirements. Plug includes
Cable Length
latch for secure connection, “through-ground” provision, and
external cable flex relief. Plugs are molded onto shielded or
unshielded cables of .180" – .215" diameter Standard cable
color is gray; black, beige and other colors can also be
specified. In addition, UL 94V-0 rated cables can be specified.
Contact Arrangements (Contact View)
Styles ST603, ST604, ST605, ST626
Termination Codes: 603, 604, 605, 626
Note: Reverse gender molded male cable assembly available.
Call factory for details.
Plug
Mating
Style 2
? ST603
? ST604
? ST605
? ST626
Description
3-contact straight
female plug (molded)
4-contact straight
female plug (molded)
5-contact straight
female plug (molded)
6-contact straight
Receptacles 1
TA3M, TB3M
TA4M, TB4M
TA5M, TB5M
TA6ML, TB6M
female plug (molded)
1. See Connector Section of Switchcraft’s Engineering Design Guide
for other mating receptacles.
2. Termination code is the same as the numbers in the plug style (e.g. termination
code for a ST626 is 626). See multi-pin ordering guide on next page.
IMPORTANT SPECIFYING NOTE
? Special 3, 4 and 5 pin/contact patterns can be tooled on special order where
production quantities warrant special handling. Contact Switchcraft with your
requirements.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
